Vessel Type: AHTS
Bollard Pull: 120T
Year Built: 2008
Builder: Bender
Class & Notation: ABS A1(E) Offshore Support Vessel, Towing Vessel, FiFi1, AMS, DPS-2, UWILD
GMDSS: A1+A2+A3
Length Overall: 80.80m
Beam: 15.80m
Depth: 5.80m
Draft: 4.70m
Gross Tonnage: 2,174
Deadweight: 2,608T
Main Engines: 3 × CAT3512B+1 × CAT3516C
Total Power: 7,575kW/10,332BHP
Propulsion: 2 × CPP with twin independent fishtail rudders
Thrusters:
– Bow: 2 × Brunvoll FU63 CPP, 600kW
– Stern: 1 × HRP, 600kW
Speed: 14.0 knots
Fuel Capacity: MGO 544m³
Fresh Water Capacity: 427m³
Other Capacities:
– Drill water/ballast: 707m³
– Liquid mud: 815m³
– Dry bulk/cement: 212m³
– Brine: 385m³
Deck Area: 635m² (1,626t@5t/m²)
Towing/Anchor Handling Equipment:
– Aft towing winch: Rolls-Royce double drum, 400t brake
– Storage reels: 2 × Ø76mm × 2,000m
– Tugger winches: 2 × 11t
– Stern roller: Ø2.4m × 4.8m, SWL 350t
– Towing pins&Karm fork (SWL 300t)
Accommodation: 38 persons
Dynamic Positioning: DP2

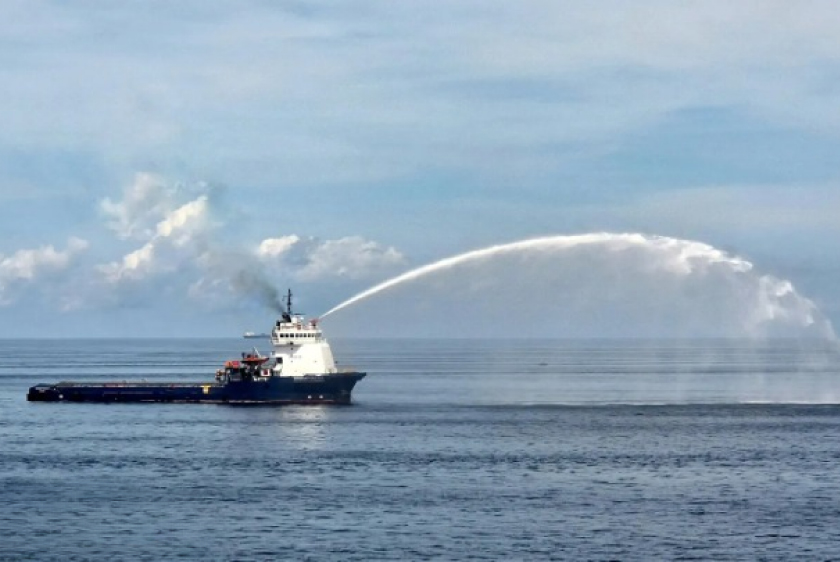

Firefighting: FiFi1
Delivery Status: Prompt
